Ground and Air Vehicles

Ground vehicles get pitch and roll angles according to the terrain surface under the object while it moves. Air vehicles get pitch and roll angles according to the altitude differences between the waypoints, regardless of the terrain surface.

Creating Dynamic Objects

To create a new dynamic object:

1. If you want to create a ground vehicle, on the Objects tab, in the Dynamic Objects group, click Ground Object. The Dynamic Object property sheet is displayed.

2. If you want to create an air vehicle, on the Objects tab, in the Dynamic Objects group, click Aerial Object. The Dynamic Object property sheet is displayed.

3. In the Object Options section of the property sheet, in the Object Type field, select one of the following:

§ 3D model

§ Image label

§ Text label

§ Virtual

4. In the Object Options section of the property sheet, in the Motion Style field, select one of the following:

§ Ground Vehicle

§ Airplane

§ Helicopter

§ Hover

5. If you selected a “3D Model” or “Image Label” type, in the File Name field, select the model or image file.

6. If you selected a “Text Label” type, in the Text field, enter the desired text string.

7. Using the property sheet, set the other parameters of the ground or aerial object. See “Creating Dynamic Objects that Move by Time" in this chapter.

8. If you want to position the dynamic object based on where the mouse is pointing in the 3D Window, on the top bar of the label’s property sheet, click Set Position Based on Mouse . See “Moving an Object Based on Where the Mouse is Pointing in the 3D Window” in the “Working with Objects” chapter for more information.

9. If you want to position the dynamic object based on where the mouse is pointing in the 3D Window and snap it to another object, on the top bar of the dynamic object’s property sheet, click Snap Based on Snapping Options . See “Moving an Object Based on Where the Mouse is Pointing in the 3D Window” and "Setting Snapping Options" in the “Working with Objects” chapter for more information.

10. If you want to position the dynamic object in the XY plane, on the top bar of the object’s property sheet, click XY Plane . See “Moving an Object in the XY Plane” in the “Working with Objects” chapter.

11. If you want to position the dynamic object in the Z plane, on the top bar of the object’s property sheet, click Z Plane . See “Moving an Object in the Z Plane” in the “Working with Objects” chapter for more information.

12. With the cursor in the 3D Window, click the mouse to define the first waypoint of the vehicle’s route.

13. Use additional mouse clicks to add waypoints to the path.

14. When you finish adding waypoints to the path, right-click to complete the route. When you close the property sheet, the vehicle starts moving along the route you have defined.

Note: After creation, you can change the parameters of the vehicle and the route using the property sheet. See “Working with the Property Sheet” in the “Working with Objects” chapter.

Creating Dynamic Objects that Move by Time

Instead of setting an object’s speed and acceleration, a dynamic object’s route can be set to begin and end at specific times. In this case, the object's acceleration is set to zero and its position is derived from the route distance, set timespan, and current TerraExplorer time.

To set a dynamic object’s movement by time:

1. On the Objects tab, in the Dynamic Objects group, click Move By Time. The Choose Time dialog and Dynamic Object property sheet are displayed.

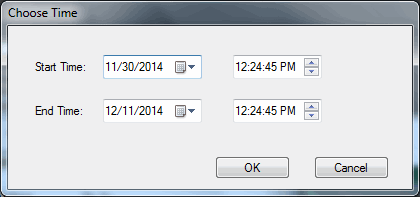

Choose Time Dialog

2. Enter a Start Time and End Time and click OK.

3. In the Object Options section of the property sheet, in the Object Type field, select one of the following:

§ 3D model

§ Image label

§ Text label

§ Virtual

4. In the Object Options section of the property sheet, in the Motion Style field, select one of the following:

§ Ground Vehicle

§ Airplane

§ Helicopter

§ Hover

5. If you selected a “3D Model” or “Image Label” type, in the File Name field, select the model or image file.

6. If you selected a “Text Label” type, in the Text field, enter the desired text string.

7. Using the property sheet, set the other parameters of the ground or aerial object. See “Dynamic Object Property Sheet Parameters” in this chapter.

9. If you want to position the dynamic object in the XY plane, on the top bar of the object’s property sheet, click XY Plane . See “Moving an Object in the XY Plane” in the “Working with Objects” chapter.

10. With the cursor in the 3D Window, click the mouse to define the first waypoint of the vehicle’s route.

11. Use additional mouse clicks to add waypoints to the path.

12. When you finish adding waypoints to the path, right-click to complete the route. The vehicle will only be visible during the timespan you set.

Note: After creation, you can change the parameters of the vehicle and the route using the property sheet. The Speed parameter will be unavailable since when moving objects by time, object speed is determined by the speed required to travel the set route in the set timespan. See “Working with the Property Sheet” in the “Working with Objects” chapter.

Dynamic Object Property Sheet Parameters

Object Parameter	Activity
Appearance
Activation Action	Select the action to perform when selecting the dynamic object from the Project Tree.
Name	Type the description or name of the dynamic object. This text appears in the Project Tree as the name of the object.
Object Options
Motion Style	Determines the style of motion of the dynamic object. You can choose from Ground Vehicle, Airplane, Helicopter or Hover. § Ground Vehicle: The object is a ground vehicle. § Airplane: The object sets the pitch angles during the flight according to altitude differences between the waypoints. It also rolls while turning between the waypoints. § Helicopter: The object leans forward with a fixed pitch angle of -15 degrees. It also rolls while turning between the waypoints. § Hover: The object always keeps the pitch and roll angles set to zero. § Manual: The object turns as fast as required to point to the next waypoint (same as value over 1000), ignoring the Turn Speed. An API user can further edit the waypoint orientation (yaw, pitch, and roll).
Object Type	Determines the type of object. Choose “3D Model” to add a loaded 3D model, “Image Label” to add an image label, “Text Label” to add a text label or “Virtual” to add a virtual object.
File Name	For 3D Model and Image types, select the associated file. In the File Name field, type, or browse, a path to an .x, .xpc, .flt, .fpc, .dae, .3ds, .obj, or .glb for 3D models, or .bmp, .jpg, jpeg, .gif, .png, or .ico for image labels.
Text	Determines the text to be used if the Object type is a Text Label.
Limit Growth	This option is only available if you selected Image Label or Text Label as the Object Type. If this property is set to Yes, the label keeps its original size in pixels (Text Size). It does not grow as you fly closer.
Font	Click on the Edit button to open the Character Format dialog. Select the required font type, size color and style. (This option is available only if the Text Label object type is selected.)
Background Color	Select the color for the vehicle’s background. Click in the field to open the Color dialog. (This option is available only if the Text Label object type is selected.)
Background Opacity	Determines the type of background for the dynamic object. Select Transparent, Opaque or None. (This option is available only if the Text Label object type is selected.)
Scale	Determines the dimensions of the object. § For 3D Model type, the actual size of the model in the 3D World is the size of the model in its internal coordinate system times the Scale value. (i.e., if the model has a width of 5 units and the scale is set to 10 meters per pixel, the width of the object in the 3D World is 50 meters.)
Route Options
Move By Time	When set to Yes, the dynamic object’s movement along the route is derived from its start and end times (as well as the route distance and current TerraExplorer time), rather than from its speed and acceleration. These start and end times are set in the Timespan group of the object’s property sheet.
Altitude Method	For ground vehicles, this property is set to Relative to terrain and cannot be changed. For aerial vehicles, set the altitude method to be used for the waypoints: § Select Relative to Terrain to place the waypoint at a specified altitude above the ground. § Select Absolute to place the waypoint at a specified altitude above the terrain database vertical datum base ellipsoid.
Altitude	During the creation of the route, this property determines the altitude above ground of the next waypoint. After you have finished placing all the waypoints on the terrain, you can use this property to set a new altitude for the entire route.
Speed	After you have finished placing all the waypoints on the terrain, you can use this property to set a new speed for the entire route. Note: This property is unavailable if Move by Time was set to Yes.
Acceleration	Determines the acceleration and deceleration speed of the object. The object tries to reach the defined speed at each waypoint by accelerating or decelerating according to this property. Note: This property is unavailable if the Move by Time property was set to Yes.
Turn Speed	Select the rate at which the object turns. Note: When set to a value of 1000 or higher, the object will turn as fast as required to point to the next waypoint ignoring the Turn Speed. Note: This property is unavailable if the Move by Time property was set to Yes.
Circular Route	Determines if the object restarts its route when it reaches the endpoint. Select one of the following options: § Stop at end – The object stops at the end of the route. § Move to start – The object drives/flies/walks back to the beginning of the route when it reaches the end. § Jump to start – The object jumps to the beginning of the route when it reaches the end. Note: This property is unavailable if the Move by Time property was set to Yes.
Play Route on Startup	Determines if the dynamic object starts moving when a FLY project opens. Choose Yes to start the dynamic object automatically when a FLY file opens or No to instruct the object to wait for a start command.
Waypoints
The parameters in this group are enabled only when Edit Nodes on the top bar of the property sheet is selected.
Selected Point	Select the point you wish to edit. The selected point is highlighted on the 3D Window.
Point X	Enter the X-coordinate for the selected waypoint.
Point Y	Enter the Y-coordinate for the selected waypoint.
Point MGRS	The coordinates of the selected waypoint in Military Grid Reference System (MGRS) coordinates. This field is only available if Show MGRS Coordinates was selected in the Options dialog. See “View” in the “Using TerraExplorer Options” chapter for more information.
Point Altitude	Enter the altitude above ground for the selected waypoint.
Point Speed	Enter the speed for the selected waypoint. The object tries to achieve this speed by the time it reaches the waypoint, under the limitation of the acceleration parameter.
Time	Click Edit and select the date and time when the object should reach the selected waypoint.
Timespan
Start Time	Click Edit and select the date and time when the object should first become visible.
End Time	Click Edit and select the date and time when the object should stop being visible.
Track Style
Show Track	Determines if a track line indicating the dynamic object’s path is displayed in the 3D Window. Note: A track is displayed while the dynamic object is being edited (i.e., as long as its property sheet is open), regardless of this property value. This property only determines whether a track will continue to display even after the object’s property sheet is closed.
Line Color	Select the color of the dynamic object’s track line. Click the Edit button to open the Color dialog, or type the color code in hexadecimal BBGGRR format (B = Blue channel 00-ff, G = Green channel 00-ff, R = Red channel 00-ff).
Line Opacity	Enter the opacity of the dynamic object’s track line. The opacity is defined as a percentage, where 100% is opaque and 0% is transparent.
Line Width	Enter the line width for the dynamic object’s track line. The width is measured in meters.
Line Pattern	Select the dynamic object’s track line pattern. You can choose between different line patterns, e.g., solid, dashed, dotted or a combination thereof.
Line Spline	Determines if the track line is drawn as a curve based on its nodes.
Visibility
Default Viewing Distance	Determines the viewing distance of the camera from the object. This distance is used as a stop mark for any “Fly-to” or “View Object” operation. It is also used when selecting to edit the object from the Project Tree. When this value is set to the default of -1, TerraExplorer calculates and sets the ideal viewing distance for the object based on its size.
Max. Visibility Distance	Sets the distance from the camera at which the object disappears.
Min. Visibility Distance	Sets the minimal distance from the camera below which the object disappears.
General
Show in Viewer	Determines if the object appears in the Project Tree when the file is viewed with the TerraExplorer Basic Viewer.
Message	The message associated with the object. The number displayed is the number of the message. To create a new message, or update an existing message, open the Create Message dialog by clicking in this field and selecting Edit. See “Using the Create Message Dialog” in the “Working with Objects” chapter for more information.
Tooltip	Type a tooltip text to appear when the mouse cursor is placed over the object in the 3D Window.
Ground Object	Determines if the object is calculated as part of the terrain’s elevation.
