Monitoring a Build

PhotoMesh Build Manager has two sections for monitoring the current build:

§  The upper monitoring section of PhotoMesh Build Manager displays information for each fuser, including status, its currently running step, and its progress for that step.

§  The lower monitoring section of PhotoMesh Build Manager displays information for each aerotriangulation and reconstruction tile, including currently running step, last step, progress, and currently running fusers.

To monitor the build:

1.     In the upper monitoring section of PhotoMesh Build Manager, from the Filter dropdown list, select one of the following:

§  All – To view all fuser information

§  Selected – To view only information related to selected fusers.

2.     The following data is available in the upper monitoring section for each of the available fusers:

Field

Description

Fuser

Fuser name.

Running Step

Step that the fuser is currently processing.

Step Elapsed Time

Time that has elapsed since the currently processing step was started.

Progress

Percentage of currently running step that has been completed.

Status

Fuser status:

§  Online – Working – Online and processing

§  Online – Waiting – Online but not currently processing

§  Offline – Will be used when online – Fuser was either disabled or closed.

3.     In the lower monitoring section of PhotoMesh Build Manager, from the Filter dropdown list, select one of the following:

§  All – to view all task information.

§  Errors – to view only information related to task errors.

4.     The following data is available in the lower monitoring section:

Field

Description

Task

All project tasks including a list of AT and reconstruction tiles.

Last Step

The previous step that was performed

Running Step

Step that the fuser is currently processing.

Status Description

Information about the build status.

Progress

Percentage of currently running step that has been completed.

Fusers

Fuser that is currently processing this task.

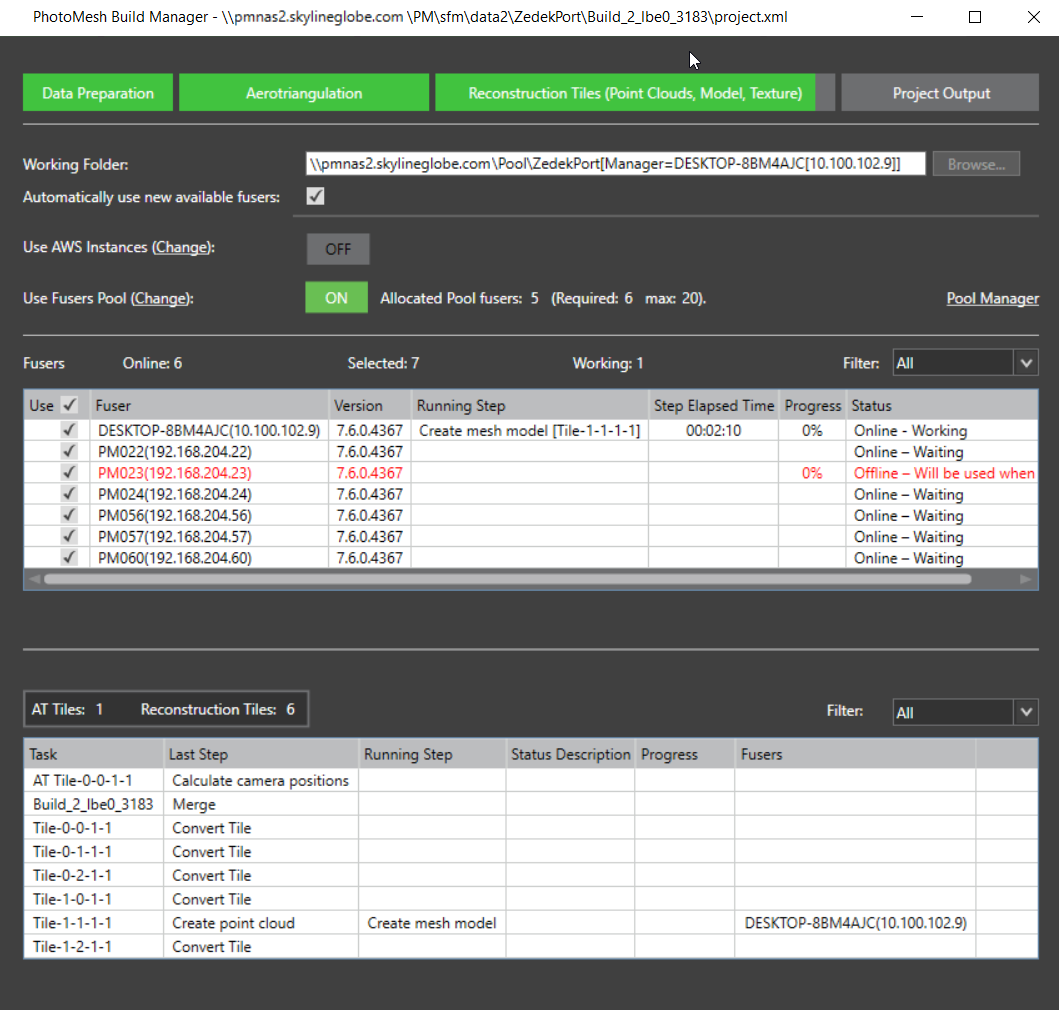

A screenshot of a computer Description automatically generated

PhotoMesh Build Manager – Monitoring a Build

5.     If you want to view a production report, click Production Report. See "Viewing a Production Report" in the "Reviewing Your Build" chapter.

6.     If you want to view build settings (read-only), click Show Settings.

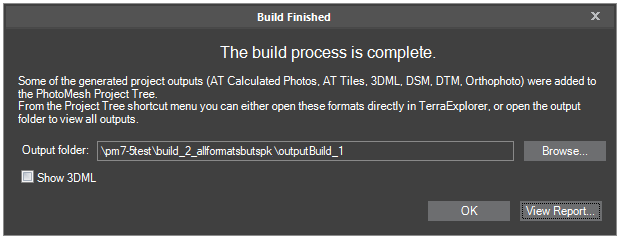

7.     When the build process is complete, the Build Finished dialog is displayed.

Build Finished Dialog

8.     If you want to open the output folder, select the link in the Output Folder field, and open it in your browser.

Note:        The output folder can also be opened at any time from the Build Outputs list. See "Opening Build Output in TerraExplorer" in this chapter for more information.

9.     If a 3DML was created in this build, and you want to show it in the 3D Window, click Show 3DML.

Note:        The 3DML’s display can also be turned on or off by toggling the Visible check box in the Build Outputs list.

10.   If you want to view a production report, click View Report.
