Loading SkylineGlobe Layers

To add a layer from a SkylineGlobe server:

1.      On the Layers tab, in the SGS group, click Load SGS Layers. The SkylineGlobe Layers dialog box is displayed, showing all layer types.

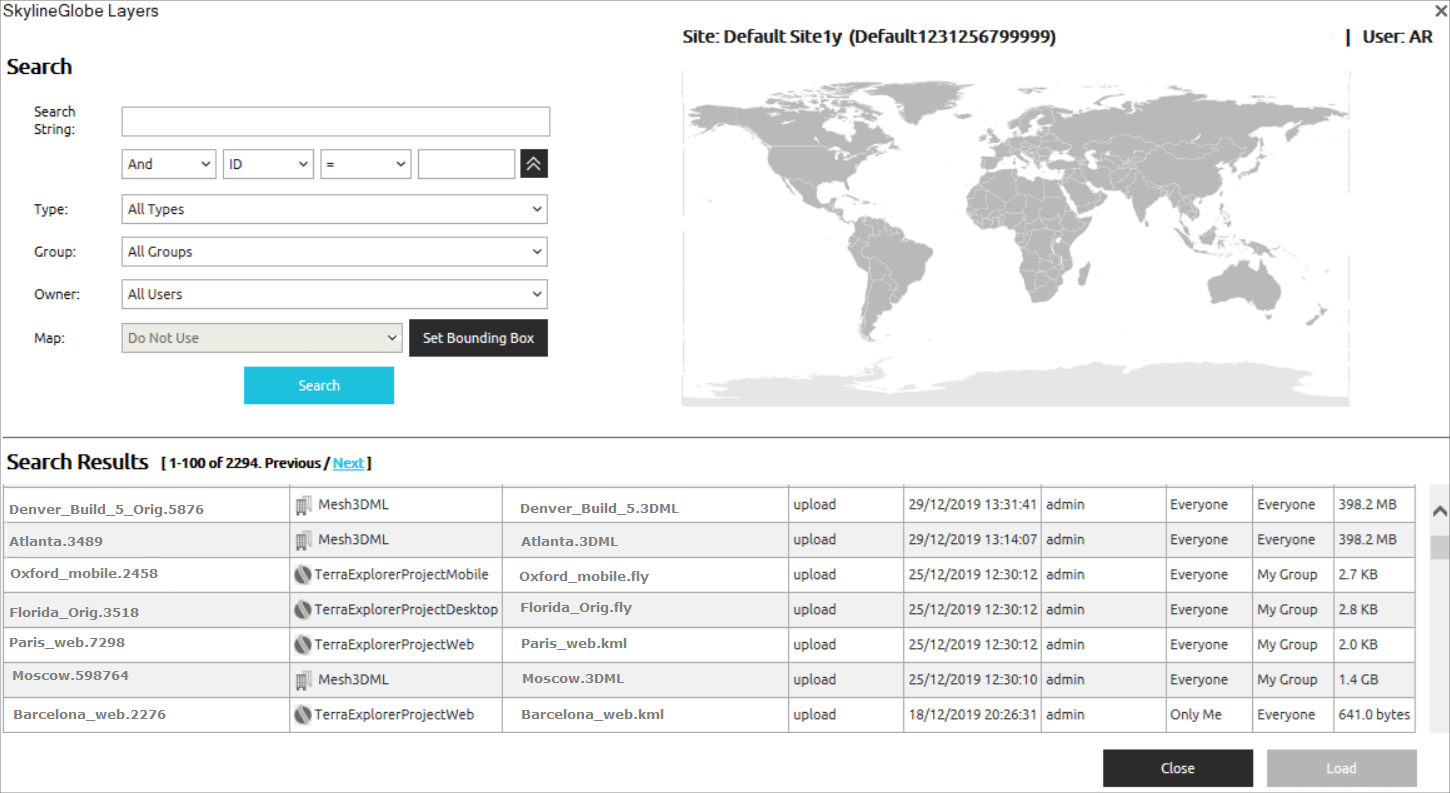

Graphical user interface Description automatically generated

SkylineGlobe Layers Dialog Box

2.      If you aren’t already logged in to a SkylineGlobe Server, the Login to SkylineGlobe Server dialog box is first displayed. Click Log in to log in to a server. SeeLogging In to a SkylineGlobe Server” in this chapter for more information. After logging in, the SkylineGlobe Layers dialog box is displayed showing all layer types.

3.      Search for the required layer. SeeSearching for SkylineGlobe Layers” in the “Working with SkylineGlobe Server” chapter.

4.      Select the layer you want to load, and click Load Layer. Use CTRL-click or SHIFT-click to multi-select layers.

Note:       When loading a feature layer, the Select Layer dialog box opens with the selected layer(s) listed in the Select a Layer section. SeeSelect Layer Dialog Box” in the “Feature Layers” chapter for information.
